3.2.Import Settings from SAP

Import Settings from SAP

Import Settings from SAP

A unique feature of ERP-Scale is the ability to read, verify and import settings from the SAP configuration. Select the SAP application from the list.

1

ECC Packing station profile (HUPAST)

1. ECC Packing station profile (HUPAST)
Imports the packing station profile (HUPAST_C) and RFC destination from SAP ECC.

2

SCM/EWM work-center

2. SCM/EWM work-center
Imports the scale, work center and RFC destination from SAP EWM.

3

SAP ODA

3. SAP ODA
Imports the RFC destination. Check the relevant RFC destination for the OPC server using transaction COOPC1:

4

QM-IDI (QE51N)

4. QM-IDI (QE51N)

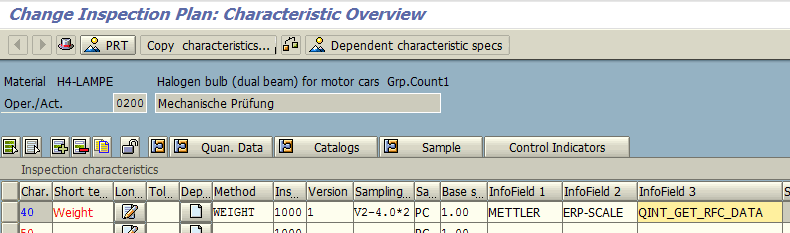

Imports the RFC destination. Check the relevant RFC destination for the inspection plan using transaction QP02:

5

Start Import button

5. Start Import button
Click to start the import.
